Part 2
NAS CAM whoring continues...
*Warning: All of 2.1 will be packed with pictures, bandwidth intensive.
*Click to enlarge
All components
Three musketeers
RAM, USB female to female connector
PicoPSU and AC-DC power adapter
All components installed onto motherboard first.
PicoPSU connectors

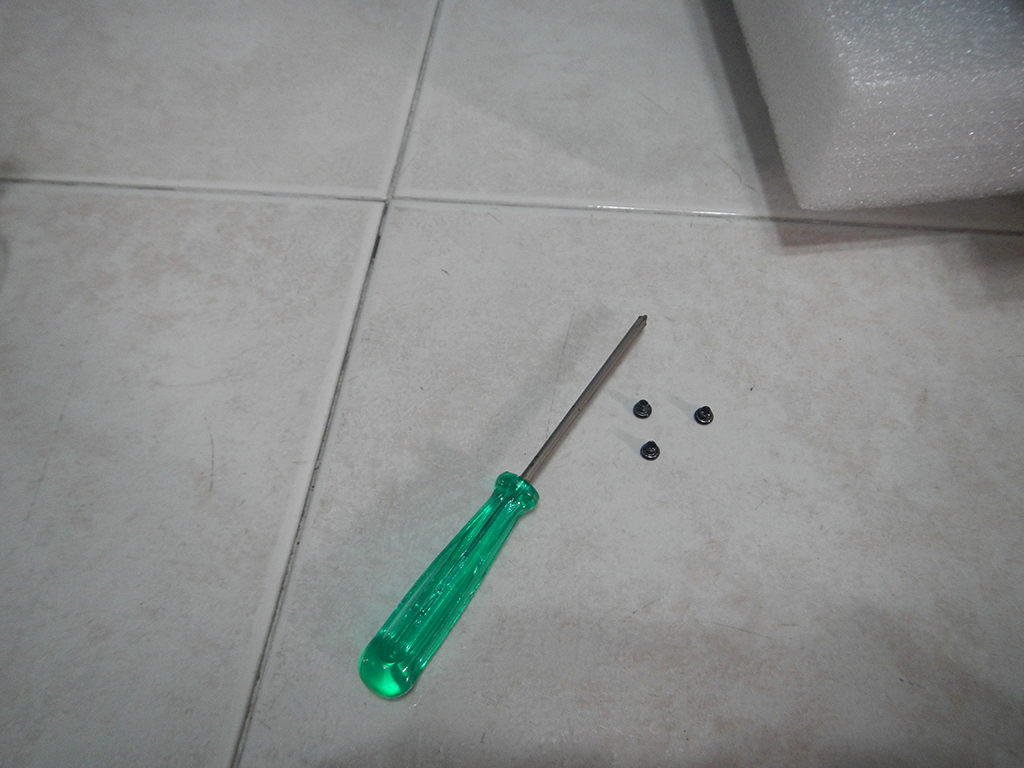

3 small screws to remove external casing of U-NAS NSC-400
The enclosure comes with 4x SATA connectors.
USB, HDD, Power, etc LED
The enclosure also comes with a 120mm fan. Below is the 3-pin connector.
Consolidated molex power connector for hot swappable HDDs..
Hey NAS keep smiling and maintain your posture, we still have two more sessions.
